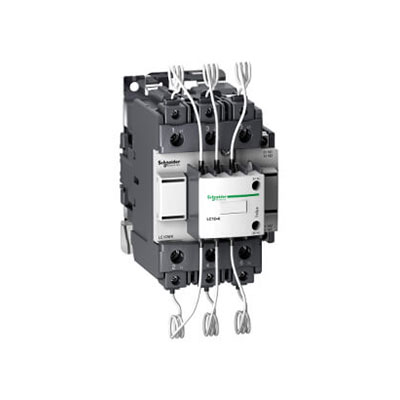

Capacitor Duty Contactors
Use of capacitor duty contactor enhance the life of the capacitors also nlimits the system transients thus improving power quality. Contactors have additional auxiliary contacts with current limiting resistors in series with it.
Product Description
Capacitor Duty Contactors are designed in particular for capacitor switching applications. As capacitor switching is associated with high inrush current, the contactors are equipped with dampening resistors that reduce the inrush current to a safe level. The contactors are utilised in APFC panels to swap power capacitors based on the amount of reactive power correction needed. The capacitor duty contacts are of the block type construction. – Control circuit: AC-powered and appropriate for 50/60Hz frequencies – Accessories: A variety of accessories are available. Daga Switchgears & Electricals Pvt. Ltd. is a trusted of high-performance Capacitor Duty Contactors supplier across Kolkata, West Bengal, Odisha, Bihar, Jharkhand, Chhattisgarh, and Assam. Our solutions are designed to enhance power factor correction systems with reliable and efficient performance.
What are Capacitor Duty Contactors?
Capacitor Duty Contactors are specialized devices designed for switching capacitor banks in power factor correction (PFC) applications. These contactors are equipped with damping resistors to handle high inrush currents and reduce transient disturbances.
Features
- Largest range
- Excellent damping of inrush current by the use of leading contacts with wiper function and special resistors
- Longer useful life of main contacts of capacitor Contactor
- Soft switching of contactor and thus longer useful life
- Weld resistant up to a possible peak inrush current of 200 times the rated capacitor current
- Enhance mean life expectancy of PFC systems
- Reduce Ohmic losses
- Tamper proof and protected resistors
- Suitable for use with or without detuned reactors
- Easy access for cable connection
- Type tested at CPRI
- AC-6b Utilisation category.
Range
- Rating: 7 KVAr to 100 KVAr.
- Optional Vo ltage Range (380 V to 690 V).
- Operational ambient temperature up to 60˚ C.
Specification
- Technical data according to Standards IEC 947-4-1, IEC 947-5-1, EN 60947-4-1 EN 60947-5-1 and VDE 0660
Key Features of Capacitor Duty Contactors
- Enhanced Durability: Designed to withstand frequent switching and heavy inrush currents.
- Low Power Consumption: Efficient operation for cost savings.
- Thermal Stability: Reliable performance under varying temperature conditions.
- Damping Resistors: Protect capacitors and reduce electrical transients.
- Compact Design: Optimized for space-saving installations.
Applications of Capacitor Duty Contactors
- Power Factor Correction Panels: Switching capacitors to maintain optimal power factor.
- Commercial Buildings: Enhancing energy efficiency in office complexes and malls.
- Industrial Power Systems: Managing reactive power in heavy-duty applications.
- Renewable Energy Systems: Used in solar and wind power setups.
Technical Chart for Capacitor Duty Contactors
| Parameter | Specification |
| Rated Voltage | 230V/400V/690V AC |
| Rated Current | 12A to 200A |
| Power Rating | 5 kVAR to 100 kVAR |
| Control Voltage | 24V DC/110V AC/230V AC |
| Insulation Voltage | Up to 1000V |
| Operating Frequency | 50/60 Hz |
| Damping Resistor Value | 3Ω to 5Ω (depending on model) |
| Operating Temperature Range | -25°C to +60°C |
| Mounting Type | DIN Rail/Panel Mount |
| Protection Features | Overload, Over-voltage, Short Circuit Protection |
Why Choose Daga Switchgears & Electricals Pvt. Ltd.?
- Comprehensive Range: Wide variety of Capacitor Duty Contactors for all requirements.
- Quality Assurance: Products comply with the highest industry standards.
- Affordable Pricing: Cost-effective solutions without compromising quality.
- Technical Expertise: Guidance on selecting the right products for your needs.
- Wide Network: Serving key regions like Kolkata, West Bengal, Odisha, Bihar, Jharkhand, Chhattisgarh, and Assam.
