LV and MV APP Capacitors
Product Description
A Leading Name in LV and MV APP Capacitors Supplier in Kolkata, West Bengal, Odisha, Bihar, Jharkhand, Chhattisgarh, and Assam – Daga Switchgears & Electricals Pvt. Ltd. When it comes to dependable power factor correction and energy efficiency, Daga Switchgears & Electricals Pvt. Ltd. stands out as a leading supplier of LV (Low Voltage) and MV (Medium Voltage) APP Capacitors across Kolkata, West Bengal, Odisha, Bihar, Jharkhand, Chhattisgarh, and Assam.
Our All Polypropylene (APP) Capacitors are engineered for superior performance, long operational life, and excellent thermal stability. Whether you need capacitors for utilities, commercial establishments, or industrial machinery, our LV and MV APP Capacitors deliver optimal results under varying load conditions. If you’re searching for a reliable LV and MV APP Capacitors supplier in Kolkata, West Bengal, look no further. We help businesses across sectors enhance energy efficiency and reduce electricity costs with our advanced capacitor solutions. Daga Switchgears & Electricals Pvt. Ltd. is a trusted LV and MV APP Capacitors supplier in Kolkata, West Bengal, Odisha, Bihar, Jharkhand, Chhattisgarh, and Assam, offering high-performance capacitors ideal for industrial and utility-grade power factor correction applications. Being one of the prominent organizations, we have been indulged in providing quality LV and MV APP Capacitors to fulfill varied demands of the clients. Low Voltage APP power capacitors are on self-healing type capacitors designed and manufactured by using latest technology and high quality material. APP Capacitors, or All Polypropylene Capacitors, are used for power factor correction and improving energy efficiency in low voltage (LV) and medium voltage (MV) electrical networks. They are constructed using polypropylene film and are known for their high reliability, long service life, and low losses.

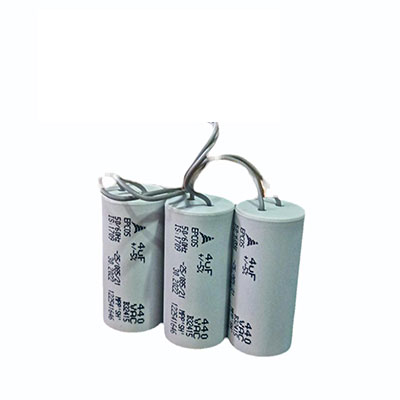

LV APP Capacitors (Low Voltage Range)
Voltage Range: Typically up to 1000V AC
Application Areas:
- Industrial power factor correction panels
- Commercial buildings and malls
- Power distribution systems
- Motor and transformer reactive compensation
Key Features:
- Cylindrical or box-type design
- Internally protected with self-healing properties
- Built-in overpressure disconnector (safety mechanism)
- Heavy-duty dielectric system
- Low watt loss (less than 0.5 W/kVAR)
Advantages
- High insulation resistance
- Long operational life (often 1,00,000 hours)
- Capable of withstanding voltage surges
- Minimal maintenance

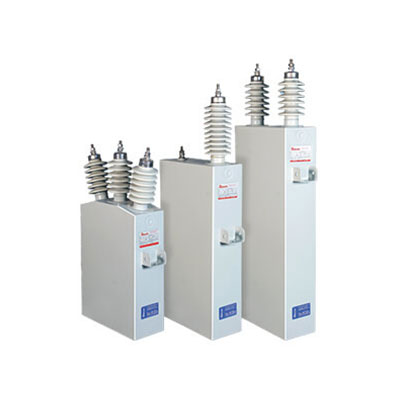

MV APP Capacitors (Medium Voltage Range)
Voltage Range: From 1 kV to 33 kV (or higher depending on design)
Application Areas:
- Utility substations
- Medium voltage distribution systems
- Electrical substations
- MV motor and transformer compensation
- Wind and solar power installations
Key Features:
- Robust metal-enclosed or open-rack design
- Series/parallel combinations for required voltage and kVAR rating
- Self-healing dielectric with low dielectric losses
- Suitable for indoor and outdoor installations
- Hermetically sealed units for harsh environments
Standards Followed:
- IS 13925 (India)
- IEC 60871 (International)
Technical Specifications (Typical)
| Parameter | LV APP Capacitors | MV APP Capacitors |
| Voltage Rating | 230V – 1000V AC | 1kV – 33kV AC |
| Capacitance Range | 1 kVAR to 50 kVAR per unit | 50 kVAR to 1000+ kVAR per unit |
| Frequency | 50 Hz / 60 Hz | 50 Hz / 60 Hz |
| Dielectric | Polypropylene film | Polypropylene film |
| Losses | < 0.5 W/kVAR | < 0.3 W/kVAR |
| Protection | Internal fuse / Overpressure trip | External fuses / Discharge resistors |
| Life Expectancy | 1,00,000 hours | 1,00,000 hours or more |
| Installation | Panel Mounted | Ground mounted or pole mounted |
Top Benefits:
- Improved power factor → Lower electricity bills
- Reduced line losses and better voltage regulation
- Extended life of motors and transformers
- Compliant with energy standards and regulations
Our Product Range Includes:
- LV APP Capacitors: Designed for panel mounting and compact installations.
- MV APP Capacitors: Built for medium voltage applications with high reliability and insulation strength.
Key Features:
- Excellent dielectric strength and low loss factor
- Designed for continuous duty and harsh environments
- High insulation resistance and safe discharge system
- Conforms to IS/IEC standards
Why Choose Daga Switchgears & Electricals Pvt. Ltd.?
- Regional Reach: Serving clients throughout Eastern and Northeastern India
- Quality Assurance: Only premium-grade APP capacitors with proven durability
- Technical Expertise: Support for selection, integration, and after-sales
- Trusted Partner: Preferred by industries, OEMs, and power utilities
